Kraft paper making machine
Key words:
paper machinery
Share
Product Details
Kraft paper making machine with engineers overseas work price.It consists of wet section(including headbox, former, press) and dry section(dry, calendered, coiled). According to the number of forming and drying the dryer, can be divided into single long net, double long net, long net, long net multi-cylinder, Yang Ke and other models; according to the speed can be divided into low speed and high speed.

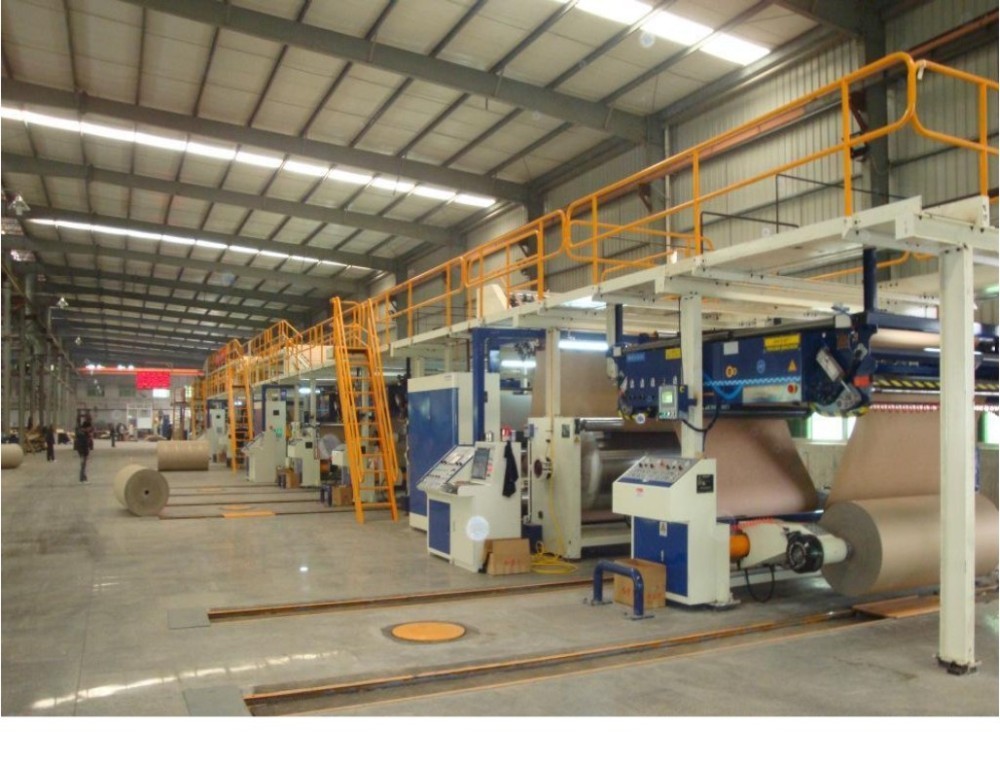

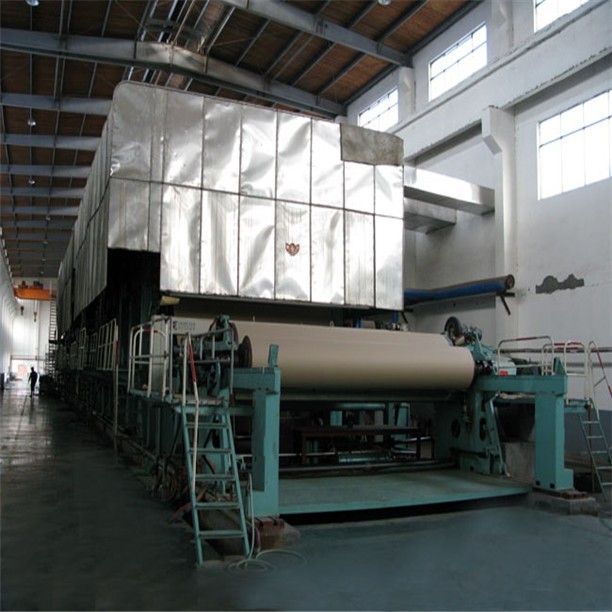

Pictures Show
Technical Parameters
| Raw material | waste and pure wood pulp |
| Outout paper | kraft paper,corrugated paper,white board paper and duplex paper |
| Capacity | 8T/D |
| Net paper width | 1600mm |
| Paper gram weight | 100-160g/m2 |
| Working speed | 80-100m/min |
| Designing speed | 150m/min |
| Wire width | 1950mm |
| Rail gauge | 2400mm |
| Drive way | AC frequency control, section drive |
Structures
| Main Parts | Specification |
| Cylinder part | Φ1250mm×1950mm×2400mm stainless cylinder mould 3 pcs, Φ500mm×1950mm×2400mm couch roll 4 pcs, including return roll 1 pc, rubber shore hardness 38℃±2. |
| Press part | Φ500mm×1950mm×2400mm natural marble roll 2 pcs, Φ450mm×1950 mm×2400mm rubber roll 2 pcs, rubber shore hardness 92℃±2, pneumatic pressure device. |
| Dryer part | Φ1250mm×1950mm ×2400mm alloy dryer cylinder 3 pcs, with dry felt device, scraper 3 sets, semi enclosed dryer hood 1 group. |
| Winding part | 1575mm Horizontal pneumatical winding machine |
| Rewinder part | equipped with 1575mm Frame-style rewinding machine 1 set |
Features
1.Low investment and high output
2.Energy saving and raw material easy to obtain
3.Considerate service before and after selling

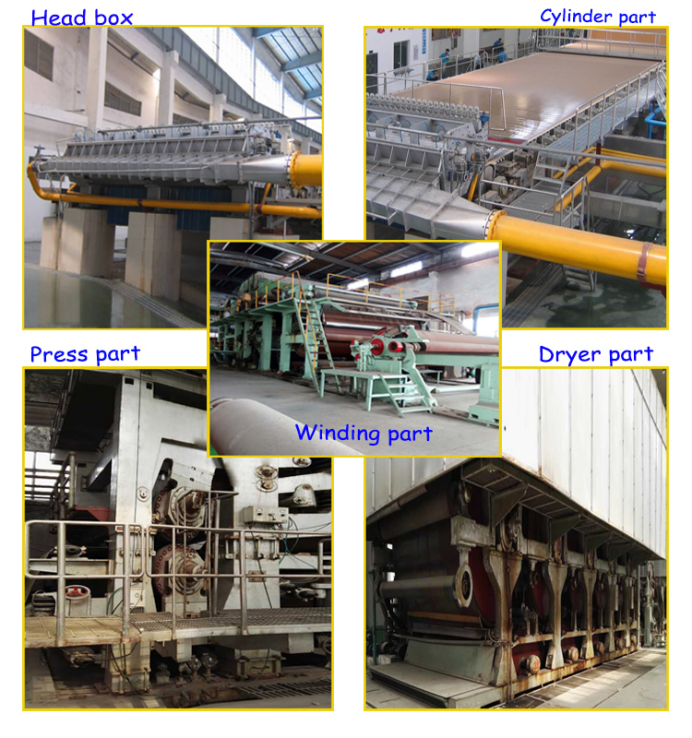

Kraft paper making machine with engineers overseas work price.Kraft paper machine is divided into five parts:head box , wire part, press part, dryer part,Winding part.
Head box is a key part of modern paper machine. Its structure and performance on the formation of paper and paper quality has a decisive role.
Wire part is dehydration and Forming of Papermaking Stage.

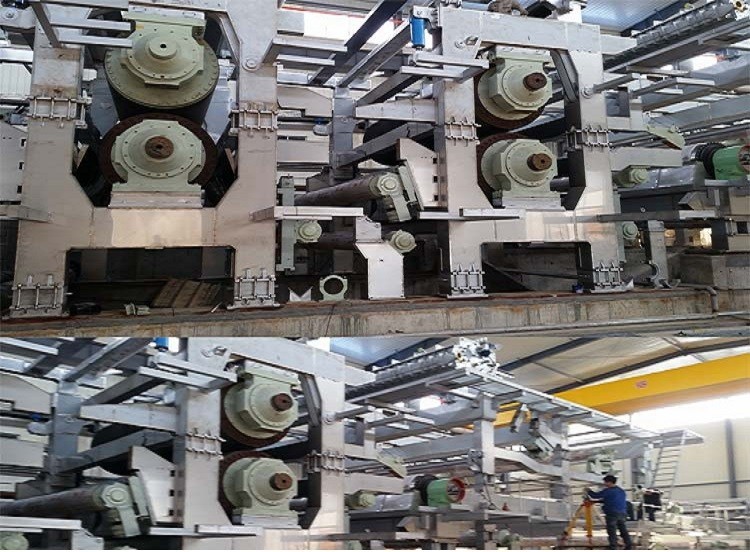

Press part is dehydration process started at the forming section is continued. By passing the paper through many press rolls, the effect of dewatering is achieved.

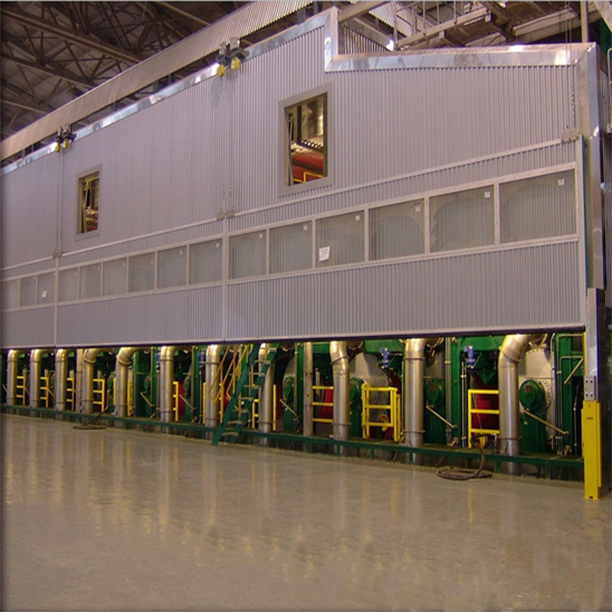

Dryer part is In the drying section, the process of drying the web is continued by using a steam-heated cylinder. In modern machines, the drying unit is installed in the cylinder cover.
winding part is mainly to roll into a large roll of paper.
Raw materials of Kraft paper making machine with engineers overseas work price.A variety of materials can cause the paper you need, our engineers can provide you with the raw materials to help you develop a different paper making program.

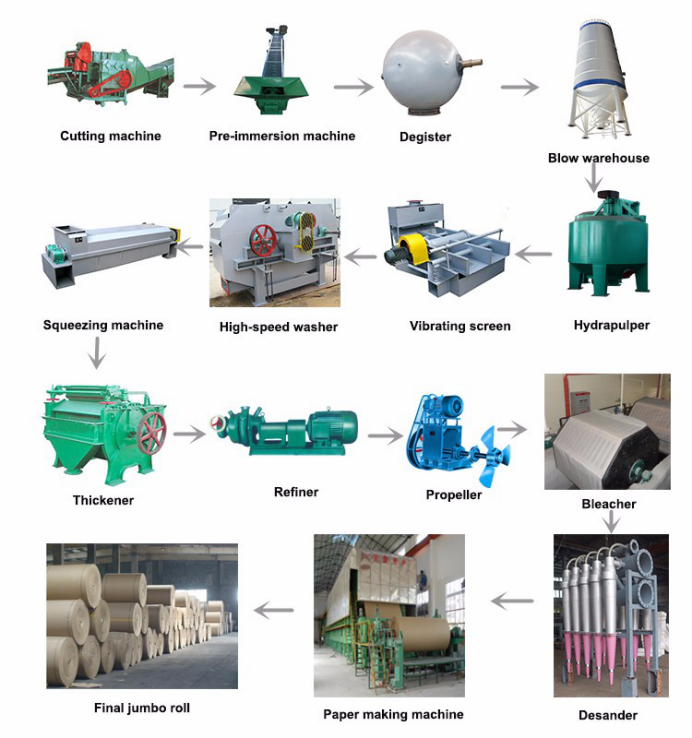

Flow Chart
Pulping making is the most important step in paper making, pulp quality can determine the quality of paper. Our engineers will teach you how to make pulp.

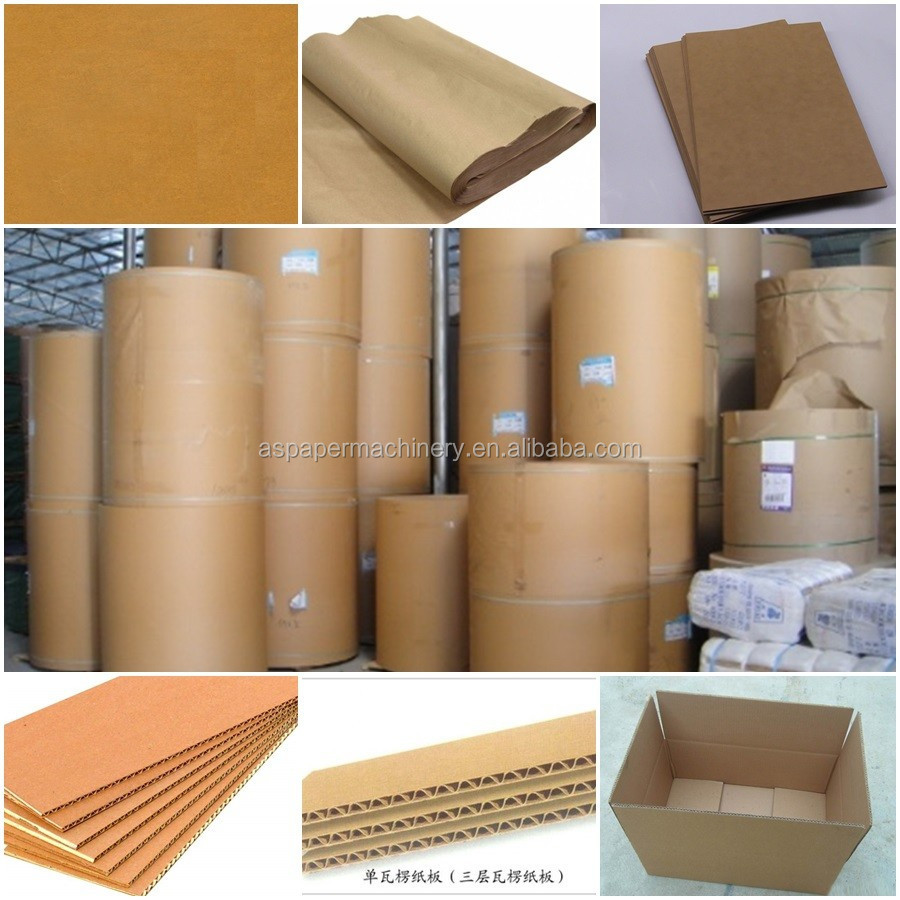

Final Products
If you need kraft paper secondary products, then we can give you with other deep processing equipment.
Packaging & Shipping
Advantages
Customer-centered design principles
High yield, high quality
Proven skills and technical support
Thoughtful pre-sale and after-sale service
Appropriate discounts can be negotiated
Packaging, transportation and delivery
Packaging Details: According to customer's request for the price of paper recycling machine
1. Fix all moving parts with plastic film.
2. Polystyrene foam board package.
3. Wrap a few circles with tight plastic film.
4. Fix the machine on the fumigated plywood tray with iron wire.
5. Wrap it with wood and nail it.
Transportation
Mode of transport
Departure from Qingdao harbor or other ports
Delivery time
Depends on the machine or machine parts you need. But it also meets your needs
OUR SERVICES
After-sales service
(a) technical advice;
2. Project evaluation;
3. Detailed factory design;
4. Installation and testing of the entire production line;
Training of engineers and workers;
6. Provide spare parts for the entire service life at cost price within 12 months of purchase.
7. We support sending engineers to your country for the installation, commissioning and testing of the machine.
After-sales service
1. The company designs and manufactures in strict accordance with the signed equipment configuration and technical requirements, in accordance with national industry standards, and ensures that the user's equipment is a qualified product that meets the requirements.
2. After the contract comes into effect, within ten days after the equipment design and manufacturing company and the end user coordinate, link up and check the installation process; The business dealings between the two parties must be replied within 8 hours.
3. The equipment shall be installed and debugged according to the time and period agreed by both parties.
4. The quality and shelf life of the equipment are one year, and the wearing parts are not within the warranty period. Packaging quality drum shelf life of six months. Refers to the acceptance date of all goods delivered to the user as the shelf life.
5, in the quality warranty period, the company provides the necessary technical services free of charge, due to equipment design, manufacturing quality problems caused by equipment
The company will be responsible for replacement and maintenance.
6. After the shelf life, the company provides customers with lifelong technical services, and provides spare parts at preferential prices and fast delivery time for a long time.
7, the company is responsible for all production technology and installation, awarded to production workers, to ensure that the teaching workers operate.
FAQ
Q
Can we visit your factory?
A
Welcome to visit our factory. You can view our production capacity, processing capacity, inspection facilities, and operation of paper production lines. More importantly, you can directly discuss with the engineer.
Q
How is the quality of your equipment?
A
(1) We are a professional manufacturer of various pulp and paper machines and environmental protection equipment, with a history of more than 40 years and competitive quality.
(2) We have a technical team composed of engineers and experts. They mainly research advanced papermaking technology to ensure that our machine design is up-to-date.
(3) The machine will be pre installed in the workshop before delivery.
Q
What is the warranty period for paper machines?
A
12 months after official operation
