Tissue paper roll making machine from electric motor winding machine
Key words:
paper machinery
Share
Product Details
Our machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit, electricity control and cutting system.
Main technical parameter of toilet paper roll cutting machine: |
|||||||
Model |
1092B |
1575B |
2000B |
2200B |
2400B |
2600B |
2800B |
Width of raw material |
1200mm |
1750mm |
1950m m |
2150mm |
2350mm |
2550mm |
2750mm |
Dia.of finished product ¢60-150mm(the tension is adjustable) |
|||||||
Dia.of core of finished product ¢20-50(core and coreless) |
|||||||
Dia.of raw material 1200mm(can accept customers’ requirement) |
|||||||
Thickness of raw material |
14g/m2-20g/ m2 |
||||||
Dia of core of raw material |
¢76.2mm |
||||||
Perforation distance |
4 knifes 100-150mm(other specifications, please point ) |
||||||
Reeling speed |
150-200m/min |
||||||
Parameter setting |
Touch screen man-computer interface operation system |
||||||
PLC |
PLC |
||||||
Raw material |
holder 2 layers(3layer, please order) |
||||||
Pneumatic system Pressure |
5kg/cm2pa( prepared by customers) |
||||||
Power |
5.5-13kw |
||||||
Overall Dimension (L*W*H): |
6100X2650X1800-6100X4050X1800mm |
||||||
Weight |
3.5-7T |
||||||
Embossment |
Single embossment, two side embossment and steel to steel embossing(depend on selection) |
||||||
Embossment bottom roller |
Felt roller, wool roller and rubber roller (depend on selection) |
||||||
Features
1.This automatic small toilet paper roll making machine is designed with computer control system,fully automatic in production process,the function is complete and the production speed is high.
2.It can automatically change the core,spray the glue and seals without stopping the machine and also automatically raise and lower speed when exchanging the core.
3.When change the core,the machine will be tight first and loosen later to avoid dropping off the roll core.
4.Equipped with automatic alarm to indicate filling up of core pipe.The machine will be automatically stopped when there is no core pipes.
5.Automatic alarm for breaking off of paper.
6.Equipped separate tension control for each unwinding jumbo roll.
7.It is convenient to change the feature to produce any other core pipe winding.
8.Left paper remind after sealing of product for convenient use.
9.Jumbo roll stand is installed by pneumatic.

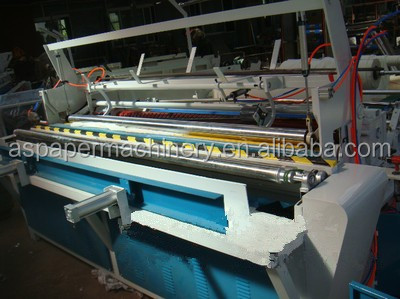

Product Display

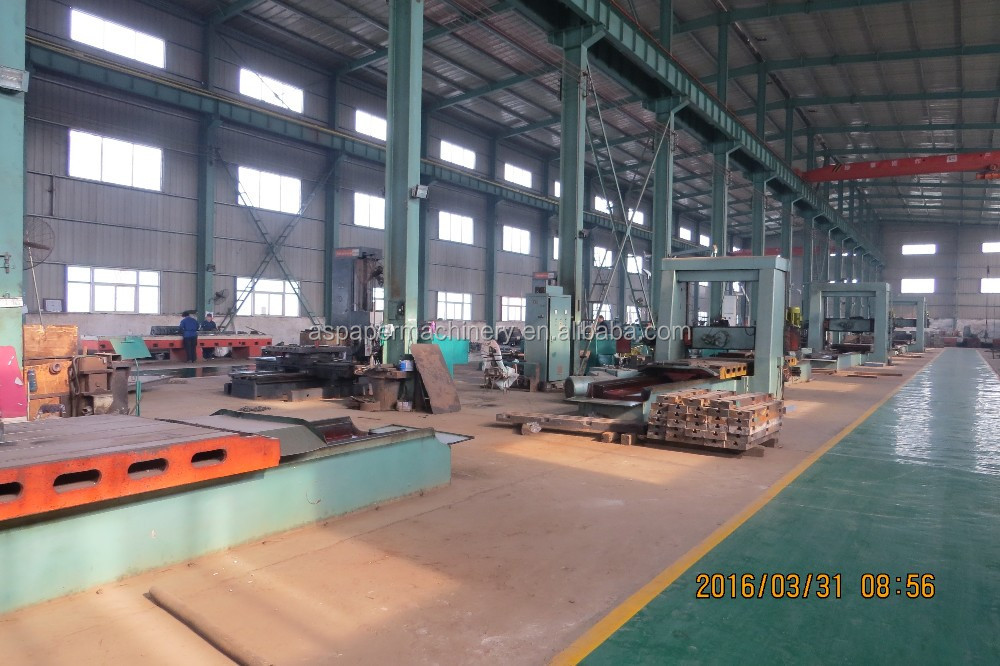

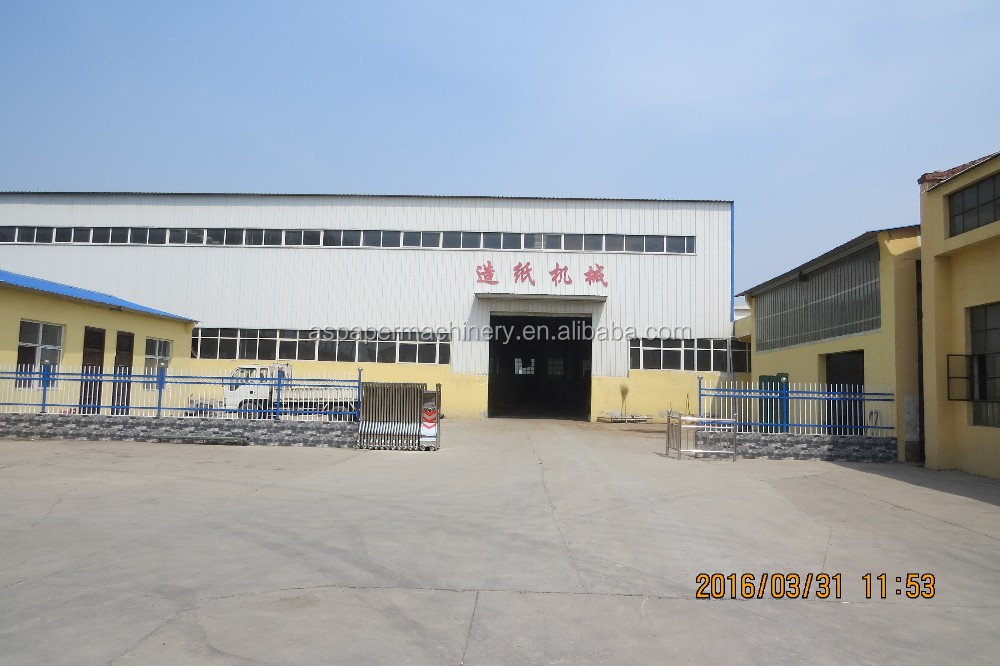

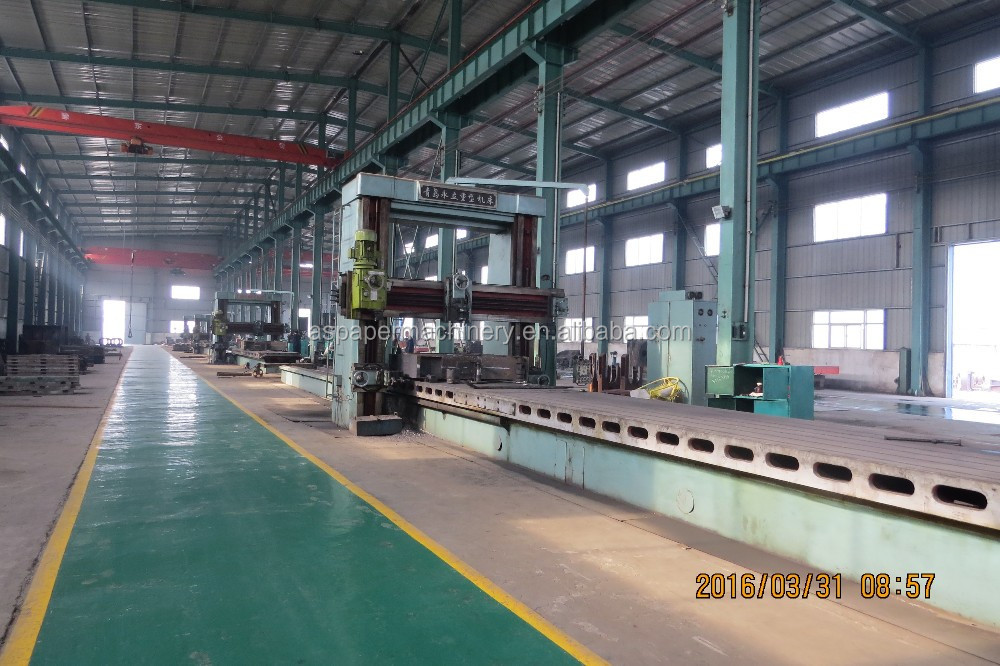

Our Company

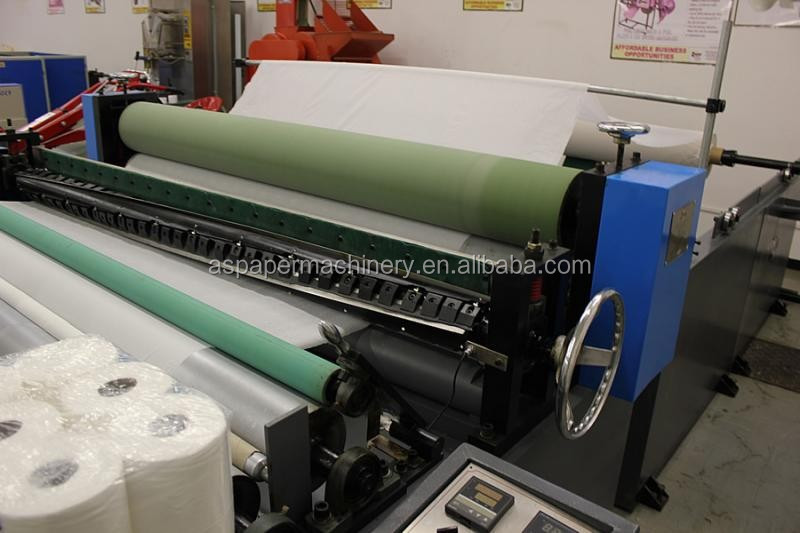

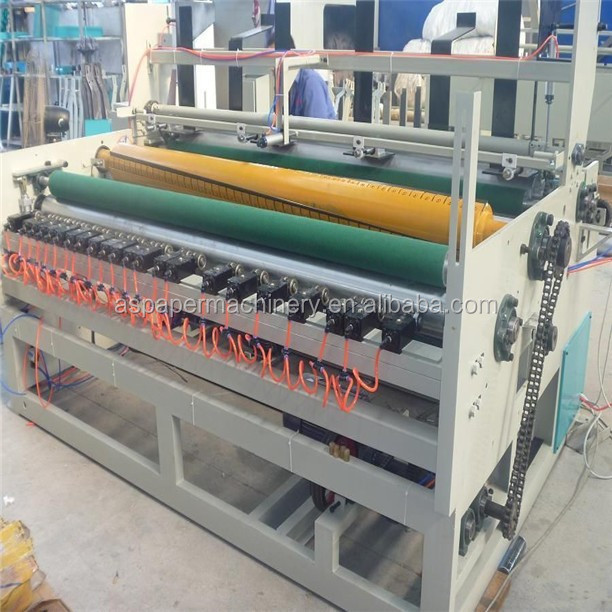

Detailed Images
Packing & Delivery

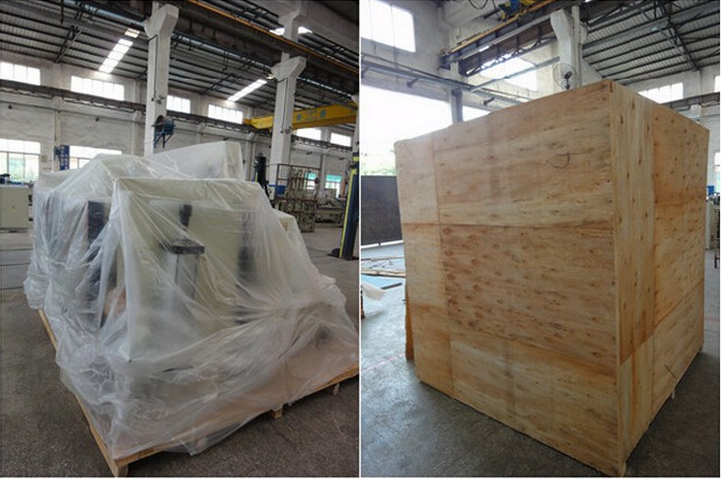

Packing
